Please Note: Scuffs and scratches on the bottom of the pedal.
From Boss:

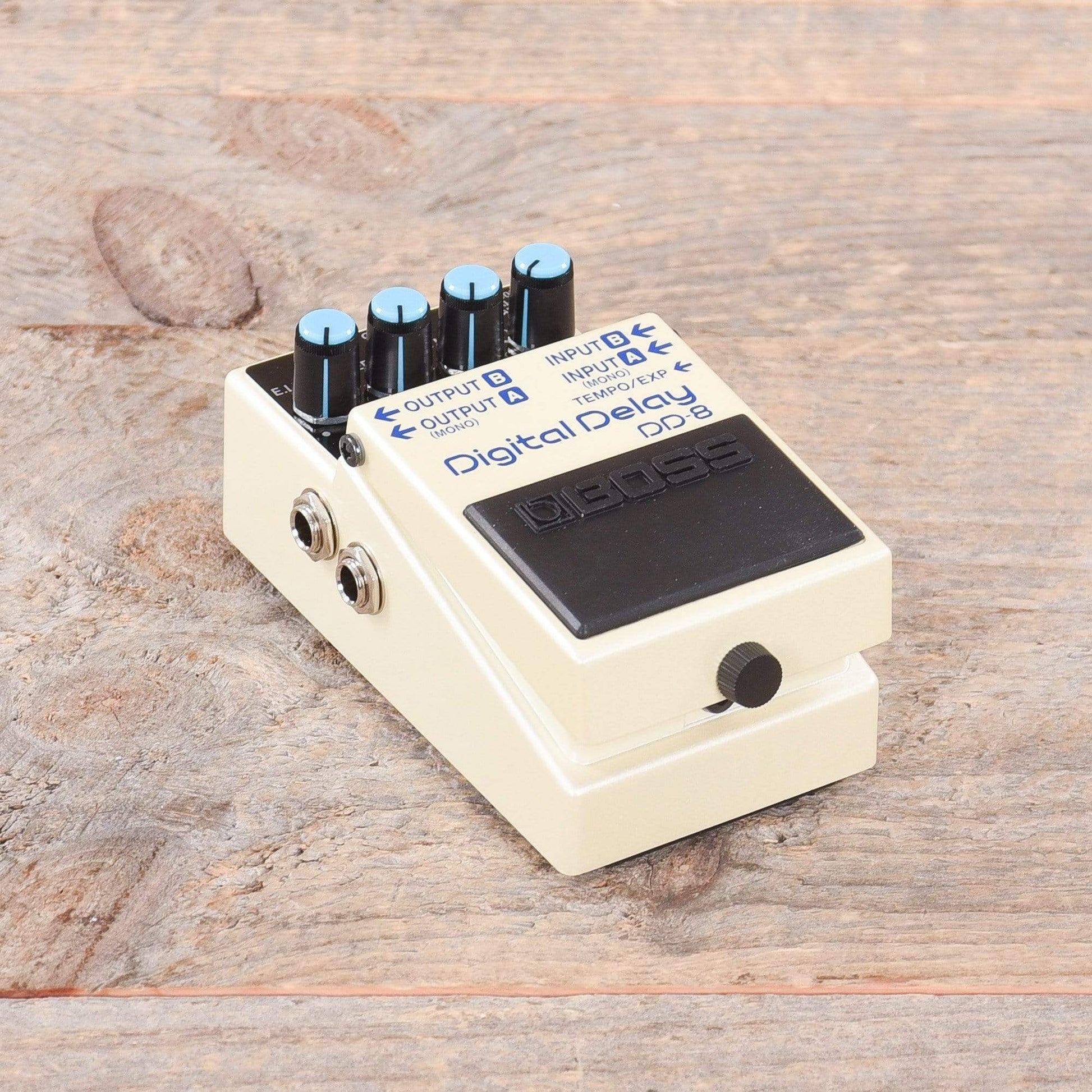

Introducing the DD-8, the most wide-ranging and feature-rich BOSS compact series delay ever. This loaded pedal delivers more of everything—more great sounds, more delay time, more control options, and more connectivity. And it does it all in a standard BOSS pedal that slides easily into any mono or stereo setup. Eleven modes provide delay colors from basic to exotic, plus a looper with unlimited overdub capability and external control support. For maximum versatility in a minimum amount of space, there’s no better delay stomp than the DD-8.

• The most advanced BOSS compact series delay ever
• Eleven versatile modes include basic digital delay, vintage echoes, shimmer, mod, looper, and more
• Looper offers up to 40 seconds of recording time, overdub capability, and three-pedal operation with external footswitches
• Three newly developed delay types: Warm, +RV (delay+reverb), and GLT (rhythmic delay)
• Up to 10 seconds of delay time available with tap tempo input
• Carryover switch sets whether delay trails continue or stop when the effect is bypassed
• True stereo I/O and three selectable output modes (independent, panning, and wide stereo)
• Smart I/O jacks support a variety of connection setups (mono, stereo, wet/dry, wet only, and more)
• Support for external control with two footswitches or an expression pedal
• Unique Twist function available in each delay mode via an external footswitch

Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass
Controls:

• MODE knob
• TIME knob
• FEEDBACK knob
• E.LEVEL(Effect Level) knob
• CARRYOVER switch
• Pedal switch

Indicator: CHECK indicator (Used for indication of check battery)
Connectors:

• INPUT-A(MONO)/INPUT-B jack: 1/4-inch phone type
• OUTPUT-A(MONO)/OUTPUT-B jack: 1/4-inch phone type
• TEMPO/EXP jack: TRS 1/4-inch phone type
• DC IN jack

Power Supply: Alkaline battery (9 V, 6LR61)
Current Draw: 65 mA
Expected battery life under continuous use: Alkaline: Approx. 5 hours
Accessories:

• Owner's manual
• Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
• Dry battery (9 V, 6LR61)

Width: 2-7/8 inches
Depth: 5-1/8 inches
Height: 2-3/8 inches
Weight (including battery): 1 lb
